Panel size: diagonal (" wide) : 65
Effective area: W x H (mm) : 803.52 x 1,428.48
Resolution: maximum (Full HD) : 3,840 x 2,160
Colours: maximum : 1,070,000,000
Brightness: maximum (cd/m²) : 350
Contrast ratio : 1,200 : 1
Pixel pitch (mm) : 0.372 x 0.372
Response: grey to grey (ms) : 8
Refreshing frequency : 60 Hz
Viewing angle: H/V (°) 178/178
LED lifetime : 50,000 hours
Colour gamut : 72%

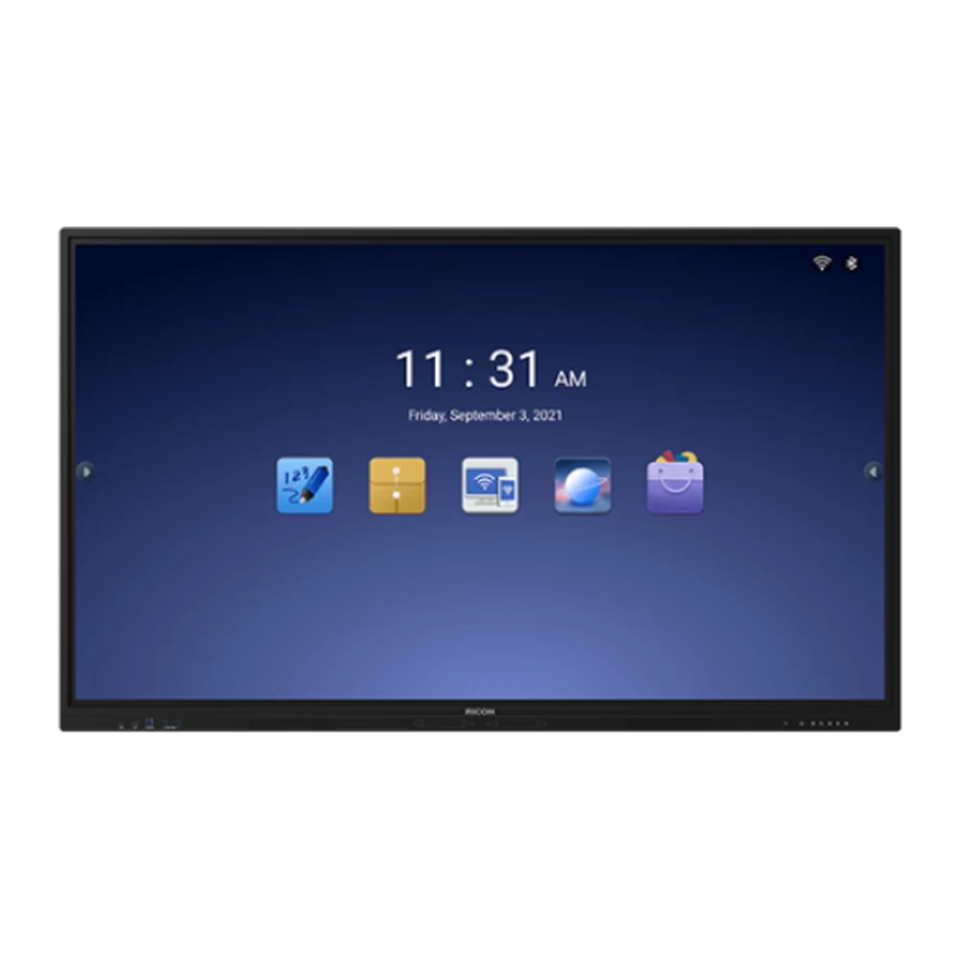

'With remote learning and collaboration now a part of most classrooms and lectures, hybrid classrooms need to allow real-time participation and information sharing with in person and remote attendees. The A6500 Ricoh Interactive Whiteboard is designed for business and built for education being affordable, intuitive and customisable.
Quickly browse the web, or launch an app at the tap of a finger or pen. Easily navigate IFPD menus, tools, functions, and apps through the customisable home screen and intuitive toolbar. Annotate on documents and save them directly to the board or the cloud for later use - all built-in as standard.
GENERAL | |
Rear interface | HDMI IN x2: Version: HDMI2.0, Up to 3840x2160@60HzHDMI1 support ARC function, HDCP 1.4/2.0/2.2 compliant, DP IN x1: Version: DP1.2a, Up to 3840x2160@60Hz, HDCP 1.4/2.2 compliant, VGA IN x1: Interface: DB15, Up to 1920x1080@60Hz , Audio IN x1: Interface: Φ3.5mm mini interface, input level(L/R): 0.2-2Vrms, LAN x2: 10M/1000Mbps Base-T, 100Mbps Base-TX, Support internet switch, To OPS(10M/100M/1000M), To Android(10M/100M), Interface: RJ-45 , USB2.0 x1: Support images, music, video file playback, only can use this USB port to upgrade, Interface: USB2.0 Type-A , USB3.0 x2: Support images, music, video file playback. Upgrade are not supported, Interface: USB3.0 Type-A , Touch-USB x1: Touch interface for HDMI1/HDMI2/DP/VGA, Interface: USB3.0 Type-B , MIC IN x1: Can Mix the MIC input and other input source to SPK OUT, Interface: Φ3.5mm mini interface, SPDIF x1: Max speed: 16Mbps, Interface: Optical , RS232-IN x1: RS232 Input, Interface: DB9 , HDMI-OUT x1: Max. resolution: 3840x2160@60Hz, Version: HDMI2.0, All signals can be Loop-outed by HDMI-OUT , Audio OUT x1: Output level(L/R): 10mVrms±40mVrms (@500mVrms 1KHz, load 32Ω), Interface: Φ3.5mm mini interface (Headphone-out) |
Front interface | Type-C x1: Power output: 20V/3A, Up to 3840x2160@60Hz, Interface: Type-C , Public USB x2: Version: USB3.0, Interface: Type-A , Touch-USB x1: Touch interface for HDMI, Interface: USB3.0 Type-B , HDMI IN x1: Version: HDMI2.0, Up to 3840x2160@60Hz, HDCP 1.4/2.0/2.2 compliant |
RAM | 4 GB |
ROM (storage) | 32 GB |
Dimensions: W x D x H (mm) | 1,511.6 x 87.8 x 920.3 |
Package size: W x D x H (mm) | 1,660 x 220 x 1,010 |
Weight (kg) | 39 |
Package weight (kg) | 54 |
Housing material (face frame/back shell) | Aluminium/metal plate |
Housing colour (face frame/back shell) | Black/black |
VESA | 4-M8 screw hole 600 x 400 mm |
DISPLAY PANEL | |
Panel size: diagonal (" wide) | 65 |
Effective area: W x H (mm) | 803.52 x 1,428.48 |
Resolution: maximum (Full HD) | 3,840 x 2,160 |
Colours: maximum | 1,070,000,000 |
Brightness: maximum (cd/m²) | 350 |
Contrast ratio | 1,200 : 1 |
Pixel pitch (mm) | 0.372 x 0.372 |
Response: grey to grey (ms) | 8 |
Refreshing frequency | 60 Hz |
Viewing angle: H/V (°) | 178/178 |
LED lifetime | 50,000 hours |
Colour gamut | 72% |
TOUCH SYSTEM | |
Sensing type | Infrared touch frame |
Surface protection | 3.2 mm toughened glass |
Infrared touch | Up to 20 points |
Interpolation resolution | 32,768 x 32,768 |
Theory clicks | Unlimited |
Connect type | USB2.0 Full Speed |
Voltage | DC+5V +/- 5 % |
Windows 10/8/7, Android | Multiple touch supported |
Windows XP, Linux, Mac OS X, Chrome | Single touch supported |
ELECTRICAL | |
Power requirements | AC 100V - 240V, 50/60Hz |
Power consumption without OPS | Maximum brightness: 300 W, 50% brightness: 180 W |
Standby condition without OPS | < 0.5 W |
Audio output power | 2x15 W / 8 Ω |
OPS power | DC 18V / 5A |
SOFTWARE | |
OS | Android 9.0 |
Pre-installed app | Whiteboard, Browser, File manager, Screen share, Office document view (incl. PDF), Media Player, Cloud storage, Android app store |
Default functions | Welcome screen (Launcher), Setting, Source setting, Annotation tool, Stopwatch, Clock, Calculator, Eye-protection, Spotlight, Screen capture, Calendar, Vote, Screen Recorder, Split Screen, Picture in Picture |
WIFI | |
Operating frequency | 2.4 GHz / 5 Ghz |
Wi-Fi standard | 802.11a/b/g/n/ac |
OPS SPECIFICATIONS | |
Main spec (OPS) | Chipset: SOC, LAN interface (Wired): 10BASE-T/ 100BASE-TX/ 1000BASE-T, LAN interface (Wireless): 802.11 ac/a/b/g/n/ax, Network authentication (Wireless LAN): According to setting on system OS, Encryption (Wireless LAN): According to setting on system OS, Interface (Output): HDMI, Interface (others): USB 3.0 Type A x 2,USB 2.0 Type A x 2, USB Type C x 1, 3.5 mm microphone jack, 3.5 mm headphone jack, Bluetooth: embedded, Power Source: DC +12 to 19V |
Capture box | Not included |
Installation | Insert into OPS slot |
Product size: W x D x H (mm) | 200 x 119 x 30 |
Product weight (kg) | 1 |
Environmental condition | Operating temperature limits: -10 - 50°C, Operating humidity limits: 20 - 80%, Storage temperature limits: -10 - 50°C, Storage humidity limits: 15 - 80% |
ECOLOGY | |
Operating temperature (°C) | 0 - 32 |
Operating humidity (%) | 20 - 80 |
Altitude limitation: sea level (m) | Lower than 3,500 |
Maximum daily operation hours (exclude stand-by time) | 18 hours / day (24 hours)Maximum daily operating hours are 18hrs/day. Do not use the machine continuously / intermittently for more than 18 hours per day. Failure to do so could result in malfunction. |
Storage temperature | -10℃ ~ +50℃ |
Storage humidity | 15% ~ 80% RH Non-Condensing |
Shelf life | 14 months after production |
