High productivity with full-colour output up to 80 ppm
Exceptional image quality with VCSEL Laser resolutions up to 2400 × 4800 dpi

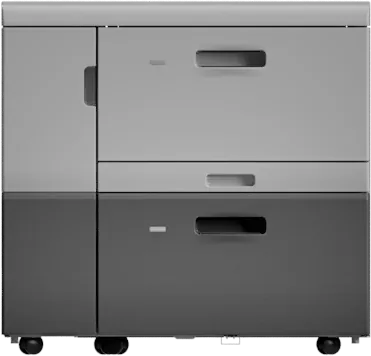

Best-in-class media support for specialty stocks, oversized sheets and heavier weights
Accurate registration and colour consistency for higher-quality jobs
Automatic duplexing up to 330 × 488mm and weights to 360 gsm
Intuitive user controls with a 10" Smart Operation Panel

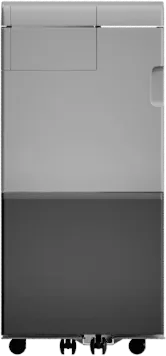

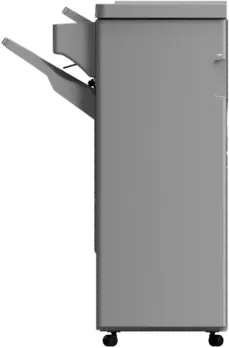

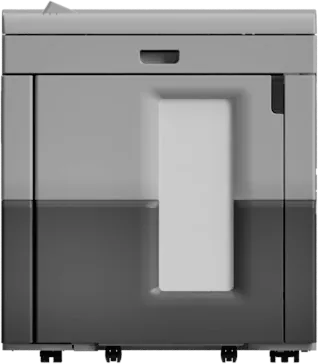

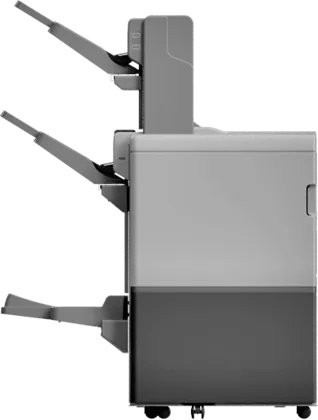

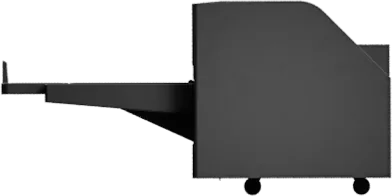

Expansive selection of finishing options for greater flexibility
Choice of Ricoh and EFI Controllers to match workflows
Integrate with Ricoh software solutions to create efficiencies that drive measurable results — from prepress to job and device management
User authentication and data encryption protect sensitive information

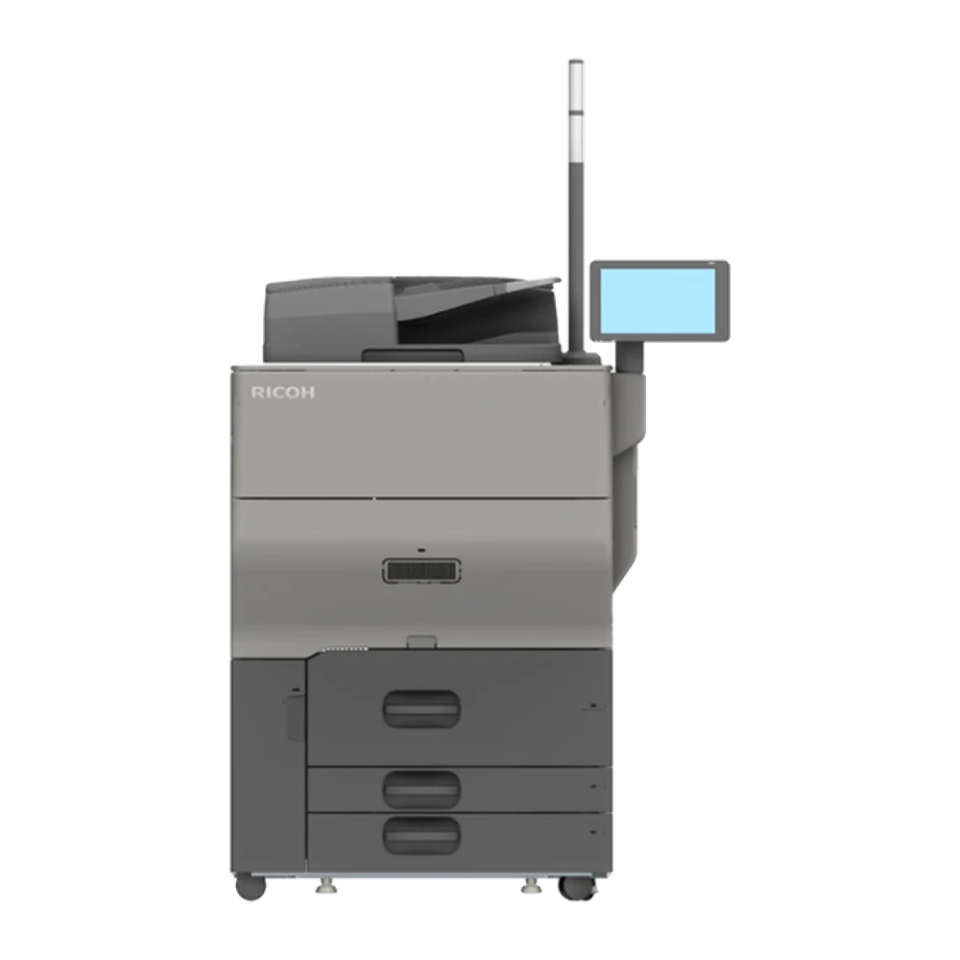

The Pro C5300s Series offers exceptional quality and handling at an affordable price. Designed for those with space and/or budget constraints, giving you access to the advanced features and cutting-edge technology found in our higher volume production systems. To meet these requirements, the image quality and media handling capabilities have been enhanced, and the choice of peripheral options has been extended. Improvements mean that you can produce finished collateral of professional quality.
Print/Copy Process | 4 drum dry electrostatic transfer system with internal transfer belt |
Fusing | Oil-less belt-fusing method |
System Memory | E-47B: 8GB RAM / 1TB SATA |
E-27B: 4GB RAM / 500GB HDD | |
CPU | EFI Color Controller E-47B: Intel Core i5-6500 processor (3.2GHz up to 3.6GHz with Turbo) |
EFI Color Controller E-27B: Intel Pentium processor G4400 3.3GHz | |
Document Feeder Type | 220-Sheet ADF with single-pass color duplex scanning at up to 240 ipm |
Control Panel | Full Color 10.1" Smart Operation Panel |
Copy Resolution | 600 dpi |
Print Resolution | VCSEL: 2400 x 4800 dpi |
Print: 1200 x 4800 dpi | |
Scan Resolution | 600 dpi |
Max Printable Area | 12.7" x 18.9" on 13" x 19.2" |
Output Speed | Pro C5310S (Letter): 80 ppm (52 - 256 gsm) / 56 ppm (256.1 - 360 gsm) |
Pro C5300S (Letter): 65 ppm (52 - 256 gsm) / 50 ppm (256.1 - 360 gsm) | |

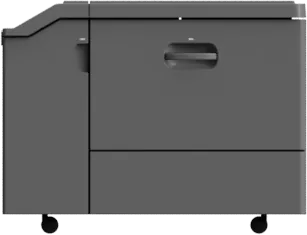

Paper Capacity | Tray 1: 2,500 sheets (1,250 x 2) |
Trays 2 - 3: 550 x 2 | |
Bypass Tray: 250 sheets | |
Total Standard Capacity: 3,850 sheets | |
Total Max Paper Capacity: 8,550 sheets | |
Paper Size | Tray 1: 8.5" × 11" |
Trays 2 - 3: 3.94" × 5.5" to 13" × 19.2" | |
Bypass: 3.94" × 5.5" to 13" × 49.6", Envelopes | |
Paper Weight | Trays 1 - 3: 14 lb. Bond - 110 lb. Cover (52 - 300 gsm) |
Bypass Tray: 14 lb. Bond - 130 lb. Cover (52 - 360 gsm) | |
Auto Duplex: 14 lb. Bond - 130 lb. Cover (52 - 360 gsm) | |
Max Monthly Volume | 150K |
Duty Cycle | 450K |
Power Requirements | 208 - 240V, 16A, 60 Hz (dedicated) |
Maximum Power Consumption | 3,840 W or less |
Typical Electricity Consumption TEC | Pro C5300s: 5.813kWh/wk |
Pro C5310s: 7.273kWh/wk | |
Dimensions W x D x H | 31.4" × 34.6" × 64.9" (incl. ADF and Status Light Pole) |
Weight | Less than 576.4 lbs. (262 kg) |
